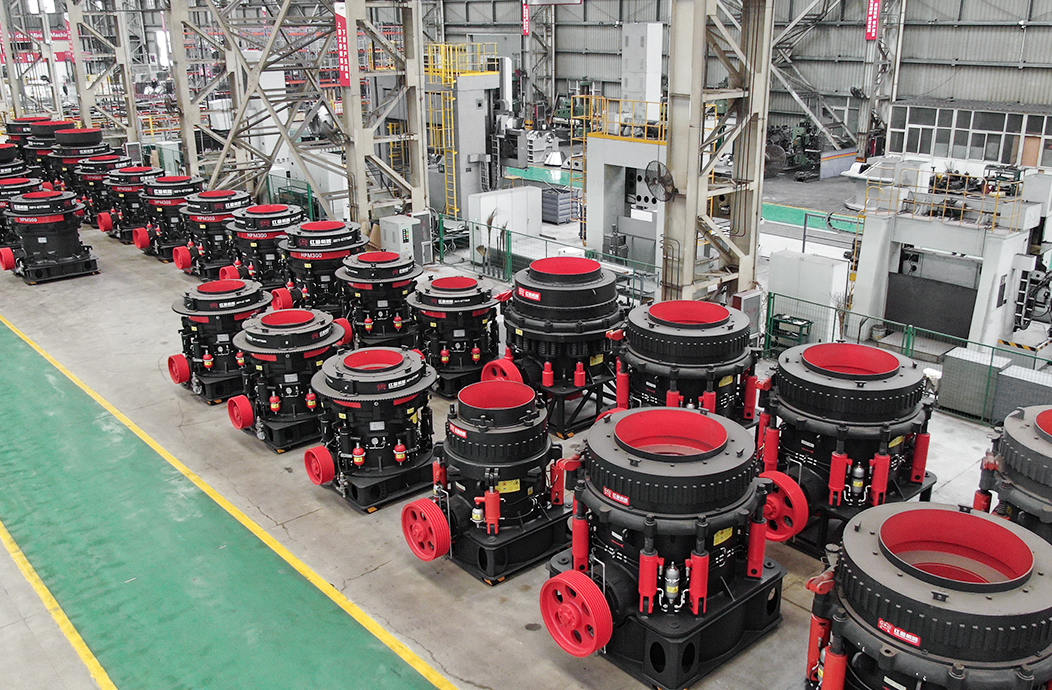

GYS Series Hydraulic Cone Crusher

Max Feed Size: 215mm

Capacity: 36-650t/h

Chat online

Cone crusher is a kind of crushing machine suitable for raw materials in metallurgy, construction, road construction, chemical and silicate industries. According to different crushing principles and different product particle sizes, it is divided into many models.

Crusher is widely used in many departments such as mining, smelting, building materials, highways, railways, water conservancy and chemical industries. Cone crusher has large crushing ratio, high efficiency, low energy consumption, uniform product particle size, and is suitable for medium and fine crushing of various ores and rocks.

Advantages

Product Advantages and Features

Overload protection

The use of a safety cylinder can automatically control the overload protection and cavity clearing functions.
Fully automatic remote control

The fully automatic control system can easily achieve remote and machine-side control.
Convenient combination

The hydraulic lubrication combined oil station is small in size, and the electrical connection uses an aviation plug, without wiring.
Convenient discharge adjustment

The discharge port is adjusted by a hydraulic push cylinder, which is easy to adjust.
Wear-resistant and durable

The dust removal mechanism adopts dry oil sealing, with a reliable structure and low failure rate.
Low site requirements

The steel frame base structure is adopted, which has low foundation requirements and reduces foundation investment.

Better Quality Production

To give you peace of mind

Technical Data

Model	Cavities	Broken cone big end diameter（mm）	Feeding Size（mm）	Max.feeding Size（mm）	Adjusting Range of Discharge Opening（mm）	Processing capacity（t/h）	Power（kw）
GYS 300	C1	910	175	140	13-38	81-180	90
	C2		102	80	9-22	60-180
	F1		76	60	3-16	36-145
	F2		41	30	3-13	36-130
GYS 400	C1	1300	241	190	19-51	207-400	200
	C2		210	168	16-38	162-350
	C3		137	110	13-31	126-310
	F1		105	85	8-25	109-230
	F2		89	70	6-16	82-230
	F3		64	50	3-16	40-230
GYS 500	C1	1600	269	215	25-64	280-650	280
	C2		241	190	22-51	258-450
	C3		209	170	16-38	180-410
	F1		133	105	10-25	162-355
	F2		89	70	6-19	136-330
	F3		70	55	5-13	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Max.feeding Size（mm）	Processing capacity（t/h）
GYS 300	C1	140	81-180
	C2	80	60-180
	F1	60	36-145
	F2	30	36-130
GYS 400	C1	190	207-400
	C2	168	162-350
	C3	110	126-310
	F1	85	109-230
	F2	70	82-230
	F3	50	40-230
GYS 500	C1	215	280-650
	C2	190	258-450
	C3	170	180-410
	F1	105	162-355
	F2	70	136-330
	F3	55	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
