Maximum Feeding Size: 1350mm
Capacity: 2018-8898t/h

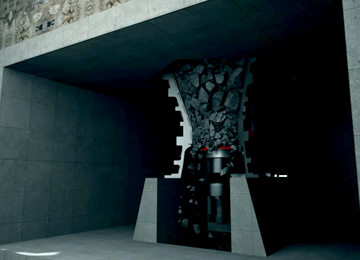

As a kind of large-scale coarse crushing equipment ,HCG series gyratory crusher can crush materials with medium and high hardness,and has been successfully applied to many industries such as metal mines,aggregate mines and large-scale buildings.
This series of models can fully handle the configuration requirements of crushing system with capacity of 2000-9000t/h.
Product Advantages and Features
To give you peace of mind
| Model | Feeding opening size (mm) |
Maximum Feeding size (mm) |
Adjustment range of discharge port (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions L×W×H(mm) |
| HCG4265 | 1065 | 900 | 140-175 | 2018-2878 | 400 | 3940×4170×6900 |
| HCG5065 | 1270 | 1050 | 150-175 | 2403-2943 | 400 | 4460×4430×7610 |
| HCG5475 | 1370 | 1150 | 150-200 | 2893-3493 | 450 | 4930×4925×8410 |
| HCG6275 | 1575 | 1350 | 150-200 | 2898-4338 | 450 | 5580×5250×9090 |
| HCG6089 | 1525 | 1300 | 165-230 | 4203-5813 | 630 | 5590×5445×10470 |
| HCG60110 | 1525 | 1300 | 175-250 | 5543-8898 | 1250 | 6200×5940×11390 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size (mm) |
Maximum Feeding size (mm) |
Capacity (t/h) |
| HCG4265 | 1065 | 900 | 2018-2878 |
| HCG5065 | 1270 | 1050 | 2403-2943 |
| HCG5475 | 1370 | 1150 | 2893-3493 |
| HCG6275 | 1575 | 1350 | 2898-4338 |
| HCG6089 | 1525 | 1300 | 4203-5813 |
| HCG60110 | 1525 | 1300 | 5543-8898 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
