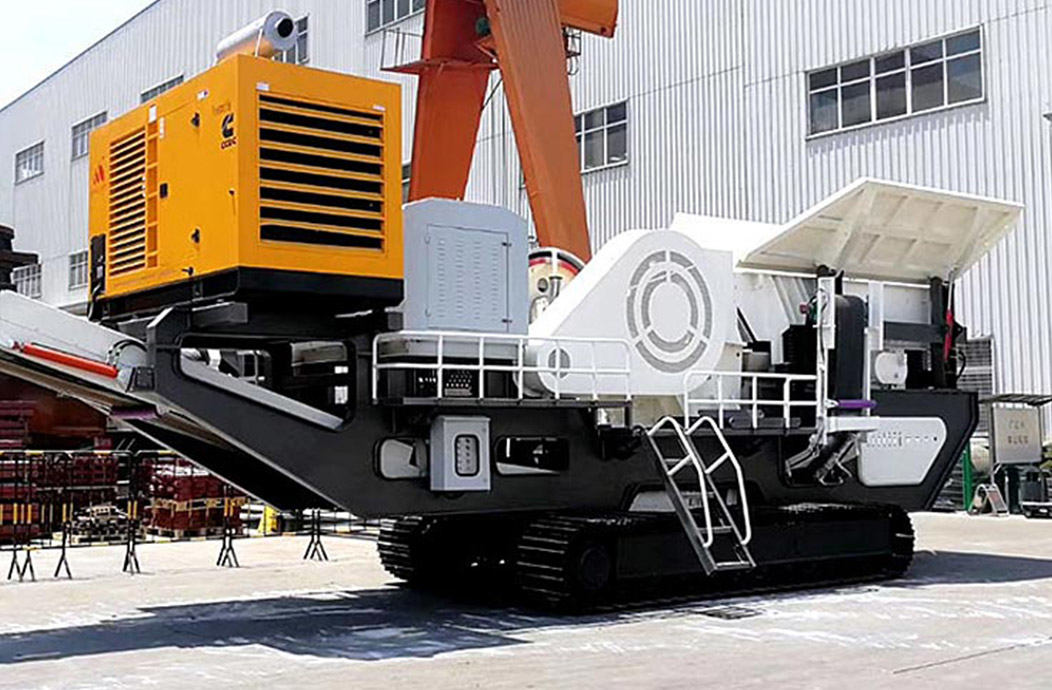

Maximum Feeding Size: 700mm
This machine can directly choose the working site, be directly driven to the working site without transportation and the materials can directly reach the granularity of final products. It is especially suitable for processing and crushing building wastes, and this is the the direct way to save the costs.
Users can apply various allocations according to different materials of different type, scale and requirement of readymade materials. The mobile jaw crusher can greatly expand the working scope of coarse crushing.
Product Advantages and Features
To give you peace of mind
| Model | WT96 | WT106 | WT120 | |
| Dimensions of Transmission Devices | Length | 14200mm | 14900mm | 15200mm |
| Width | 2900mm | 3000mm | 3200mm | |
| Height | 3470mm | 3600mm | 3700mm | |
| Weight | 38t | 50t | 65t | |
| Feeder | Hopper Volume | 5m³ | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | 4300mm | |
| FeederModel | GZDT3895 | GZDT1145 | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Crusher | Model | CJ96 | CJ106 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | 1200×870mm | |
| Max.Feeding Size | 480mm | 560mm | 700mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 141.4kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT96 and WT106
| Model | WT96 | WT106 | |
| Dimensions of Transmission Devices | Length | 14200mm | 15200mm |
| Width | 2900mm | 3000mm | |
| Height | 3470mm | 3600mm | |
| Weight | 38t | 50t | |
| Feeder | Hopper Volume | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | |
| FeederModel | GZDT3895 | GZDT1145 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Crusher | Model | CJ96 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | |
| Max.Feeding Size | 480mm | 560mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT120
| Model | WT120 | |
| Dimensions of Transmission Devices | Length | 15200mm |
| Width | 3200mm | |
| Height | 3700mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 6m³ |
| Loading Height | 4300mm | |
| FeederModel | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Crusher | Model | CJ120 |
| Inlet Dimensions | 1200×870mm | |
| Max.Feeding Size | 700mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | |
