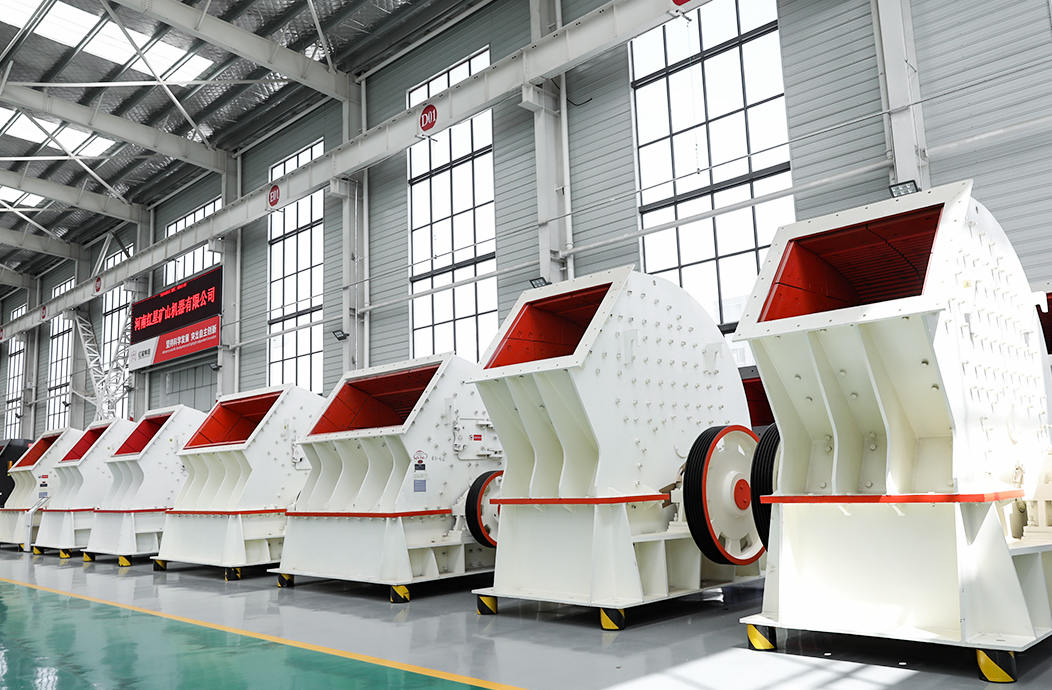

PCZ Heavy Hammer Crusher

Maximum Feeding Size: 1000mm

Capacity: 60-3000t/h

Chat online

PCZ Heavy Hammer Crusher is widely used in many industries such as mining, smelting, building materials, highway, railway, water conservancy, chemical industry, etc.

It is suitable for crushing various medium-hard and brittle materials with a compressive strength not exceeding 150Mpa, such as limestone, bluestone, coal gangue, etc.

Advantages

Product Advantages and Features

Low energy consumption

PCZ heavy hammer crusher crushes stones in one step without secondary crushing and shaping process, which can reduce costs by about 40%, with low energy consumption and low investment.
A wide variety of crushable materials

PCZ heavy hammer crusher is particularly suitable for crushing limestone and medium-hard stones with compressive strength below 200Mpa.
High degree of automation

Adopt an external lubrication system including oil pump, oil tank and pipeline. When the oil temperature is too high or the oil flow rate is too slow, the crusher will be automatically shut down.
High production efficiency

Modular design, by changing the cavity type, you can achieve the conversion of coarse, medium and fine crushing, and improve production efficiency.

Better Quality Production

To give you peace of mind

Technical Data

Model	Rotor diameter×length (mm)	Feed Opening Length×width(mm)	Feeding Size (mm)	Processing Capacity(t/h)	Power (kw)	Dimensions L×W×H (mm)
PCZ1308	Φ1330×790	870×780	≤380	60-160	132	2880×2130×2390
PCZ1410	Φ1400×1000	1060×740	≤450	80-210	2×90(160)	2830×2100×2485
PCZ1610	Φ1600×1000	1090×930	≤480	100-230	2×132	3370×2415×2750
PCZ1612	Φ1600×1200	1340×1140	≤500	120-350	2×160	3370×2613×2750
PCZ1615	Φ1600×1500	1570×1140	≤550	200-550	2×200	3370×2925×2750
PCZ1716	Φ1700×1600	1420×1200	≤600	400-850	2×250	3520×3000×3210
PCZ1720	Φ1700×2000	2030×1200	≤650	500-1000	2×400	3670×3390×3330
PCZ1920	Φ1900×2000	1980×1210	≤750	800-1500	2×500	4490×3910×3600
PCZ2225	Φ2200×2500	2530×1610	≤1000	1500-3000	1250	4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding Size (mm)	Processing Capacity(t/h)
PCZ1308	≤380	60-160
PCZ1410	≤450	80-210
PCZ1610	≤480	100-230
PCZ1612	≤500	120-350
PCZ1615	≤550	200-550
PCZ1716	≤600	400-850
PCZ1720	≤650	500-1000
PCZ1920	≤750	800-1500
PCZ2225	≤1000	1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
