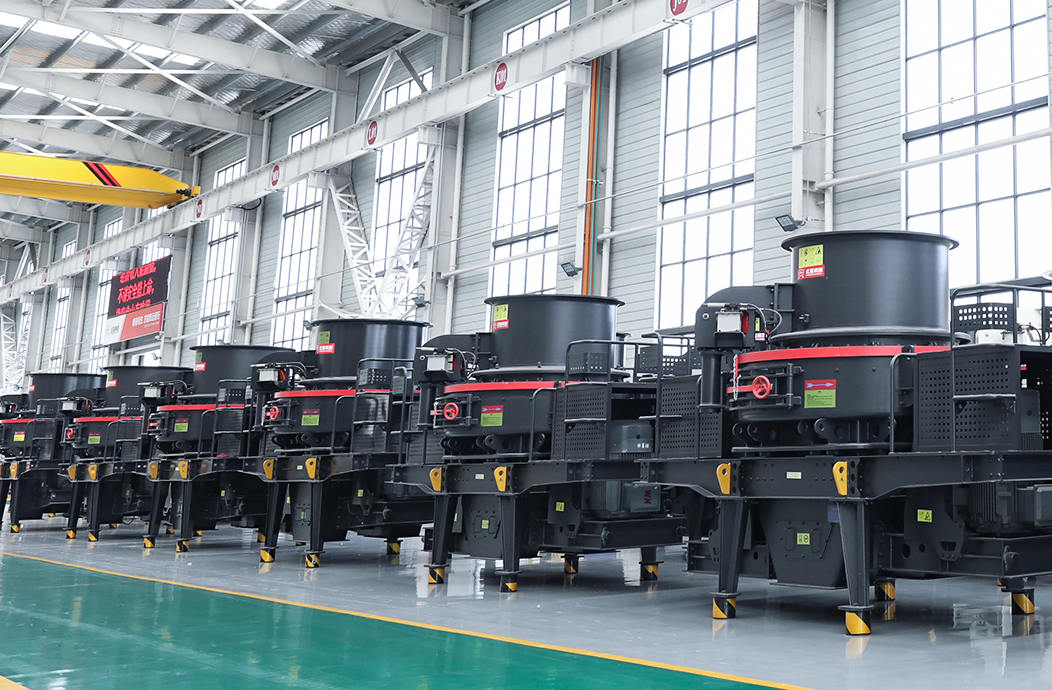

VSI A7 Series Sand Making Machine

Maximum Feed: 45mm

Processing capacity: 10-55t/h

Chat online

VSI-A7 series impact sand making and shaping machine is a new generation product that has absorbed the advanced technology of similar products at home and abroad and has many independent research and development results.

It has shown extremely powerful performance in the application of large and super large machine-made sand and fine aggregate production lines.

Advantages

Product Advantages and Features

Flexible feeding mode

Conversion between "cascade feeding + center feeding" and "full center feeding" modes.
Large discharge port

Effectively prevents material blockage and improves crushing efficiency.
Reinforced crushing chamber

Reduces wear costs and increases crushing efficiency.
Four-port impeller design

The four-port impeller design improves the crushing efficiency of the equipment, with large material throughput and high yield rate. Equipped with hydraulic cover opening and lifting device to reduce maintenance difficulty.

Better Quality Production

To give you peace of mind

Technical Data

Model	Hard material	Soft material	Sand Making	Sand Shaping	Motor Power（kw）
Model	Max.Feeding Size （mm）		Throughput（t/h）		Motor Power（kw）
VSIA7 400	<40	<45	260-285	314-345	2×200
VSIA7 500	<45	<50	340-370	405-480	2×250
VSIA7 630	<50	<55	450-488	540-590	2×315
VSIA7 800	<50	<55	556-603	652-703	2×400

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sand Making	Sand Shaping	Motor Power（kw）
Model	Throughput （t/h）		Motor Power（kw）
VSIA7 400	260-285	314-345	2×200
VSIA7 500	340-370	405-480	2×250
VSIA7 630	450-488	540-590	2×315
VSIA7 800	556-603	652-703	2×400

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
